Under Sink Organizer with a Garbage Disposal
A garbage disposal claims the center: the body is typically 6 to 9 in across and hangs 12 to 15 in below the sink. Build storage beside it, not under it: one narrow organizer per clear side, a removable low bin in front, and the reset button, cord and connections left reachable.
The disposal is not just an obstacle, it is a service point. It vibrates, it occasionally jams, and its reset button sits on the bottom of the body. Storage that presses against it or hides it turns a two-minute reset into an unloading job.
Real bodies to plan around, from the manufacturers' own spec sheets: an InSinkErator Badger 5 runs about 6.3 in across and 11.5 in tall, an Evolution Compact about 8.75 by 12.25 in, and a Waste King L-8000 about 8.5 by 16 in. Practically, a disposal turns a 30-inch cabinet into two 7-to-9-inch cabinets plus a shallow front strip; shop for those three spaces individually and the disposal stops being a problem.
Recommended layout

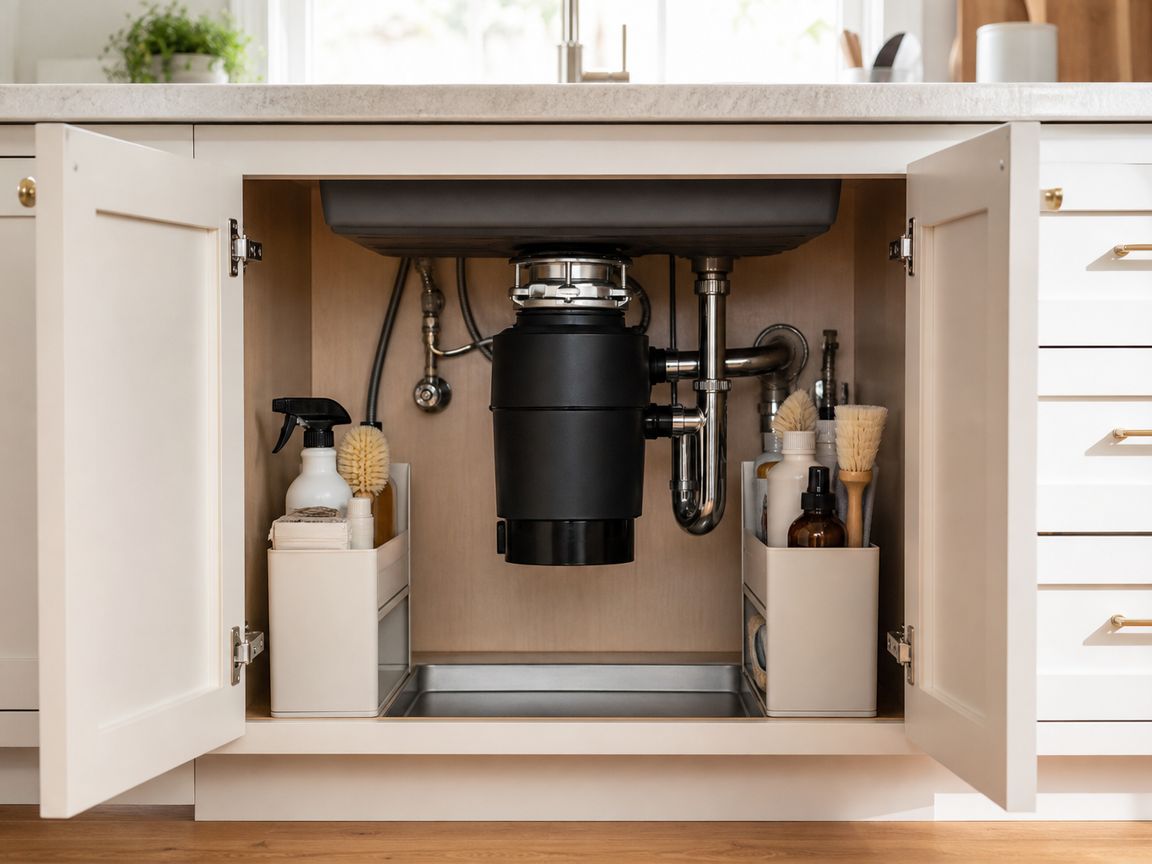

Tall bottles go on the clearest side, daily-grab items in a front caddy, and the disposal keeps a visible ring of empty space.
Start here: Work around the disposal: one narrow organizer (up to about 9.1 in wide) in each clear side zone, a removable low bin in front, and nothing fixed under the disposal body.
Use this page's approach if
kitchens where the disposal and trap share the center; the side-lane numbers above are the realistic shopping sizes.
Skip or adjust it if
your disposal drains to one side with a clear center; then a pipe-cutout shelf may span more width than these estimates allow.
| Storage zone | Max width | Max depth | Max height | Best use |
|---|---|---|---|---|
| Left zone | 9.1 in | 21.5 in | 17 in | Narrow slide-outs, bin stacks, side baskets |
| Right zone | 9.1 in | 21.5 in | 17 in | Narrow slide-outs, bin stacks, side baskets |
| Front strip | 29.5 in | 10.3 in | 9 in | Low trays and one-motion daily bins |
| Back strip | 29.5 in | 18.5 in | 17 in | Only if every joint stays visible and reachable |
Size classes that match this layout
| Size class | Shop at or under | Fit | Where it goes | Notes |
|---|---|---|---|---|
| Slim side basketvery narrow, 5-6 in lanes | 5.5 in W × 14 in D × 10 in H | Exact fit | Left zone | Rescues the sliver of space beside offset plumbing. Small capacity: best for brushes and refill packs stored upright. |
| Stackable binnarrow, 5-7 in lanes | 6 in W × 14 in D × 7 in H | Exact fit | Left zone | Fits the tight lane every other class gives up on; rental-safe. Buy open-front: the lower bin must stay reachable without unstacking. |
| Stackable binstandard, 8-11 in lanes | 9 in W × 13 in D × 8 in H | Exact fit | Left zone | The zero-risk default for any plumbing layout. Stack two high at most; the top bin needs 1 in of lift-out room. |
| Cleaning caddycarry kit, handle included | 10 in W × 13 in D × 11 in H | Exact fit | Largest clear zone | The grab-and-go zone: parks front-center of the widest lane. Height listed with handle: the handle must clear the bend on lift-out. |
| Low turntableflat, spins under the bend | 10 in W × 10 in D × 3.5 in H | Exact fit | Front strip | Puts small bottles a spin away in heights nothing else uses. Keep it off the trap ring: the spin needs a flat clear footprint. |
| Low open trayfront strip, under the bend | 15 in W × 12 in D × 4 in H | Exact fit | Front strip | Lives under the trap where nothing else fits; doubles as a leak spotter. Must lift straight out in one motion without threading around the trap. |
| Slide-out drawernarrow, for 6.5-8 in lanes | 8 in W × 16 in D × 13 in H | Good fit | Left zone | Daily-access winner for a clear side lane beside the trap or disposal. different style than you picked, still workable. Rails need about 0.25 in of side play and a clear travel path front to back. |
| Compact two-tier shelfside-lane, 7.5-10 in wide | 8 in W × 15 in D × 14 in H | Good fit | Left zone | Doubles shelf area in one lane without any mounting. different style than you picked, still workable. Check lower-tier clearance against your tallest daily bottle. |
What not to buy here
Full-width slide-outs, tall center shelving, or anything that blocks the reset button, the cord, the air-gap line or the dishwasher drain connection.
Mistakes this page exists to prevent
- Measuring the cabinet but not the disposal body; models vary by inches in both diameter and drop.
- Stacking bins against the disposal so they absorb its vibration and slowly walk into the drain connections.
- Blocking the outlet or the cord path, then having to empty the cabinet to unplug the unit.
Common questions
How much space does a garbage disposal take under the sink?
Manufacturer spec sheets put common bodies at 6.3 to 8.75 in in diameter and 11.5 to 16 in tall from the sink flange (Badger 5: 6.3 x 11.5; Evolution Compact: 8.75 x 12.25; Waste King L-8000: 8.5 x 16), plus the drain arm to the trap. Measure your model.
Can I put anything directly under the disposal?
Only something low, soft-sided or open, and only if the reset button on the bottom stays reachable. A shallow leak tray is the safest choice.
Do disposal-safe organizers exist?
Yes, in effect: narrow side units, two-piece sets, and shelves with large open centers. The label matters less than the dimensions; run them through the checker.
The disposal shares the cabinet with a dishwasher drain. Does that change anything?
It adds a hose loop along one wall: where no countertop air gap is used, code requires the drain hose to rise in a high loop under the counter before dropping to the disposal. Keep that side's organizer an inch narrower and never pinch the hose behind a bin.
Does an under-sink trash can work next to a disposal?
Only a low-profile pull-out on the clear side, and only when the slide path misses the disposal body. Measure floor to the lowest disposal point first; under about 17 in, skip standard-height pull-out cans.
