Guide · 10 minutes with a tape
How to Measure Under a Sink for Organizers
Six measurements decide every under-sink purchase: inside width (wall to wall), usable depth (front lip to first rear obstacle), height to the lowest bend, clear door opening with doors at full swing, and wall-to-pipe on each side. Round space down, products up, and keep a 0.5 in margin.
The six measurements, in order
- Inside width. Wall to wall at the cabinet floor. The label ("24-inch cabinet") is the outside story; face frames steal 2 to 3 in of it.
- Usable depth. Front lip to the first obstacle on the back wall. Shut-off valves cost about 1.5 in; a filter or hot-water tank, 3 or more.

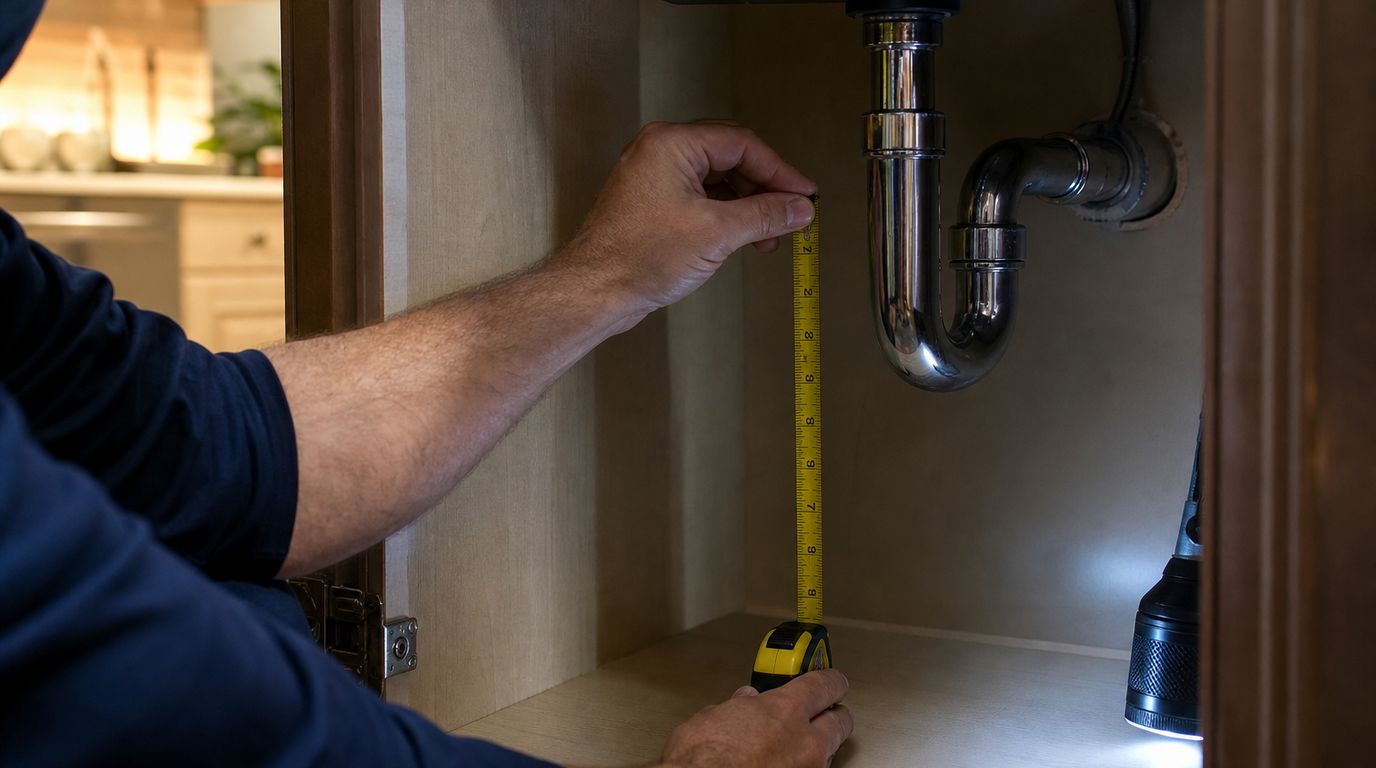

- Height to the lowest pipe. Floor to the bottom of the trap bend, or the disposal body if lower. Never to the sink: the bend hangs 4 to 6 in below it.
- Clear door opening. Doors at full swing, measure hinge hardware to frame (or to the center stile). This number vetoes rigid boxes, so take it carefully.
- Wall to pipe, left and right. Your two lane widths. They are rarely equal; write both down.
- Extras map. Disposal body diameter, dishwasher hose wall, filter housing, and the depth at which the drain arm crosses.
Printable measuring card
Inside width: ______ in Usable depth: ______ in
Height to lowest pipe: ______ in Clear door opening: ______ in
Wall to pipe: left ______ in · right ______ in
P-trap: centered / left / right / rear Disposal: yes / no
Back wall: just pipes / valves stick out / filter or tank
Rounding rules that protect the margin
Round available space down to the nearest quarter inch and product sizes up. An 8.4-in lane is an 8.25 lane; an 8.1-in product is an 8.25 product. The bias always favors the fit, and it is why the checker's 0.5-in margin holds up in real cabinets.
The cardboard dry-run
Before ordering anything large: cut a box to the candidate's footprint, carry it through the door opening, park it in its zone, and close the doors. Two minutes of cardboard finds the hinge arm and the diagonal drain arm that the tape measure missed.
Common questions
Inside or outside measurements?
Inside, always: wall to wall for width, front lip to first rear obstacle for depth, floor to lowest bend for height. The outside label is marketing; the inside is physics.
How do I measure around a P-trap?
Four numbers: floor to the lowest bend, left wall to the pipe, right wall to the pipe, and the depth at which the arm crosses. Together they draw the trap on your map.
Should I round measurements?
Round space down and products up: available 8.4 in becomes 8.25; a product listed 8.1 becomes 8.25. The bias protects the 0.5 in margin.
What tool do I need?
A tape measure and a flashlight cover it. A scrap of cardboard for the mockup test is the only upgrade worth making.
